MATRIX SURFACE

the Light that Embrace

High quality FULL-LIT MATRIX LED surface Panel Lights are elegant in design which gracefully creating a calm, uniform& balanced light effect for maximum visual comfort. Subtle addition for shadow-free and diffused lighting.

Colors:

Wattage:

CCT:

Application Areas

Office: Office:Office spaces, Lobbies and corridors

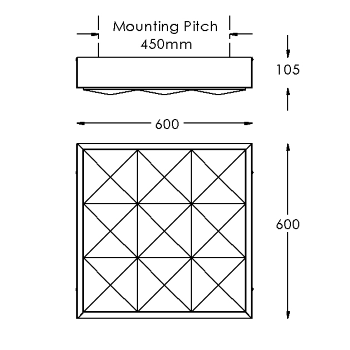

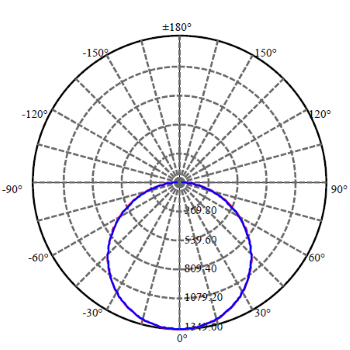

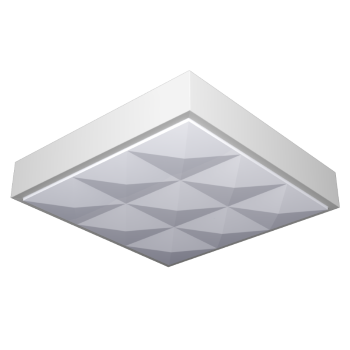

Product Configuration / Application Images

In case of additional questions - please ask below:

Our lighting designers and sales engineers are ready to support your project specifications.

Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.

Technical Specifications

Technical Data

Lumen maintenance	L70 @ 50K Hours
Photo biological Safety	RG0
Electrical Insulation Class	Class 1
IP Rating	IP20
Driver Placement	Integral
Driver Type	Constant Current
Rated I/P Voltage	220V - 240 Vac
Rated I/P Current	0.17A @ 40W
PF	>0.95
THD	<10%
IK Rating	IK 02
Operating ambient Temp	0 to 35 Degree C
Input Voltage Range	140V - 270V
MacAdam Value	3 SDCM
Wattage	30W - 40W

Features

Minimalist slim design with housing made of fabricated sheet metal.
Specially formulated matrix diffuser for optimal light visibility.
Corrosion resistance white powder coated finish using Nano Technology.
High efficiency driver with necessary safety protections along with external 6KV SPD.
