MOON V2 STD SURFACE
The Light that Embrace

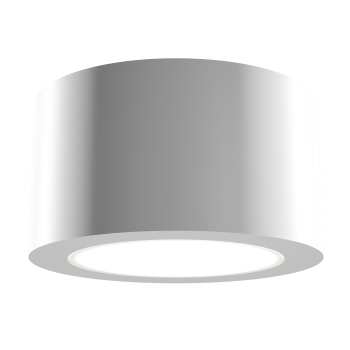

MOON is a low glare functional surface LED downlight luminaire, Ideal for the work space which demands high quality light.
Colors:
Wattage:
CCT:
Application Areas
Office: Office: Office spaces, Lobbies and corridors
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 Vac |
| Rated I/P Current | 0.08A @ 18W |
| PF | >0.95 |
| THD | <10% |
| Operating ambient Temp | 0 to 35 Degree C |
| Surge Rating | 6KV with SPD |
| Input Voltage Range | 140V - 270V |
| MacAdam Value | 3 SDCM |
| Wattage | 12W - 24W |
Features
- Corrosion resistance white powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections along with 6KV SPD.
- Pressure die-cast aluminum housing for optimal thermal conductivity.
- Specially formulated injection molded PC diffuser for optimum light transmission.
Application Areas
Office: Office spaces, Lobbies and corridors
