MOON V2 STD
The Light that Embrace the Workspace

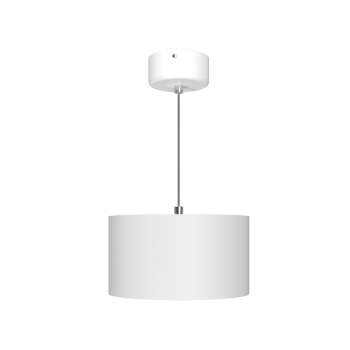

MOON is a low glare functional suspended LED downlight luminaire, Ideal for workspaces that requires high quality light.
Colors:
Wattage:
CCT:
Application Areas
Office: Office:: Office spaces, Lobbies and corridors.
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V- 240 Vac |
| Rated I/P Current | 0.10A@24W |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 08 |
| Operating ambient Temp | 0 to 35 Degree C |
| Operating Voltage Range | 140V- 270V |
| Surge Rating | 6KV with SPD |
| MacAdam Value | 3 SDCM |
| Wattage | 12W- 24W |
Features
- Corrosion resistance white Powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections along with 6 KV SPD.
- Pressure Die cast Aluminum housing for optimal thermal conductivity.
- Specially formulated injection molded PC diffuser for optimum light transmission.
Application Areas
Office:: Office spaces, Lobbies and corridors.
