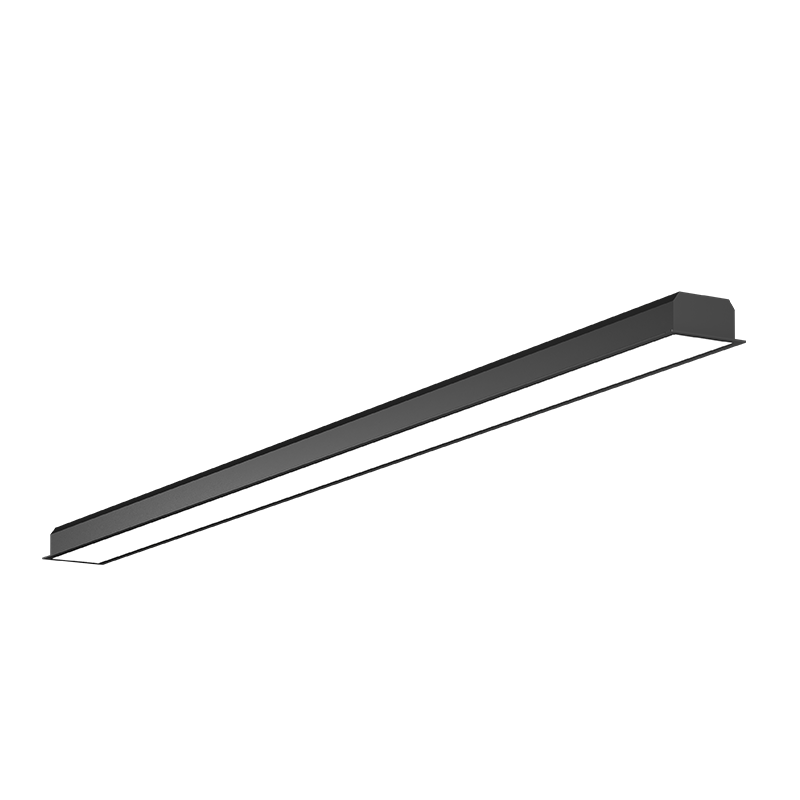

PROFILE 25
A Better Way Of Lighting
PROFILE 25 is a LED Linear Recess Lighting delivering continuous defined lines and consistent light to commercial, hospitality and residential interior with low glare.
Colors:
Wattage:
CCT:
Length:
Application Areas
Office: Office: conference rooms, open offices, lobbies, and other environments
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Surge Rating | 6KV with SPD |
| Driver Placement | NON Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 VAC |
| Rated I/P Current | 0.10A @ 24W |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| UGR Rating | <19 |
| Wattage | 12W - 48W |
Features
- High transmittance diffused diffuser for low glare and optimum light transmission.
- Corrosion resistance with special powder coated finish using Nano Technology.
- Extruded aluminum housing for better thermal management.
- High efficiency driver with necessary safety protections along with additional 6KV SPD.
Application Areas
Office: conference rooms, open offices, lobbies, and other environments
