PUPIL
Inspirational interiors

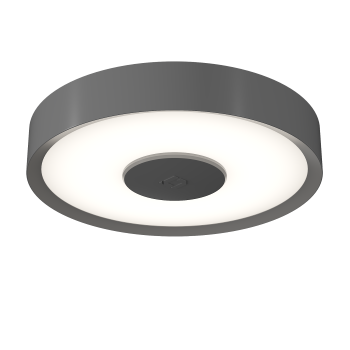

Pupil is a surface mounted LED low height economical and high efficiency downlight used for retrofit application ideally for office, hospitality and residential use.
Colors:
Wattage:
CCT:
Application Areas
Office: Office: Office spaces, Lobbies and corridors
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 Vac |
| Rated I/P Current | 0.06A @ 15W |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| Input Voltage Range | 140V - 270V |
| MacAdam Value | 3 SDCM |
| Wattage | 12W - 18W |
Features
- A slim design downlight for low depth ceilings.
- Pressure die cast aluminum housing for optimal thermal conductivity.
- UV stabilized diffuser for optimal light transmission.
- Corrosion resistance white powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections.
Application Areas
Office: Office spaces, Lobbies and corridors
