REVLUN
Reflect your interior

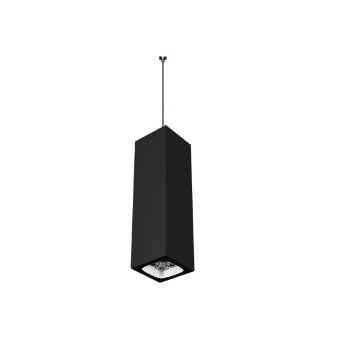

Revlun is a modular suspended mounted precise spot down light for varied tasks including ambient & accent with maximum flexibility.
Colors:
Wattage:
CCT:
Application Areas
Office: Office:: Office spaces, Lobbies and corridors.
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Surge Rating | 6KVA With SPD |

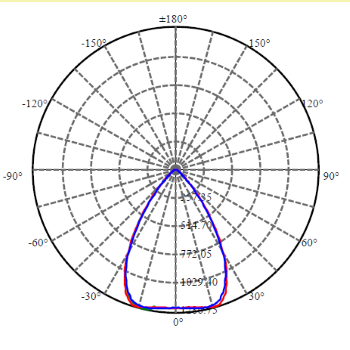

| Optics Beam Angle | 10/30/60/90 (+/-)5 Degree |
| Driver Placement | Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 Vac |
| Rated I/P Current | 0.06A @ 15W |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 08 |
| Operating ambient Temp | 0 to 35 Degree C |
| Input Voltage Range | 140V - 270V |
| MacAdam Value | 3 SDCM |
| Wattage | 12W - 15W |
Features
- Corrosion resistance Powder coated finish using Nano Technology.
- Pressure diecast aluminum housing for optimal thermal conductivity.
- High efficiency driver with necessary safety protections along with additional 6KV SPD.
- Specially formulated injection molded PMMA lens cover for good impact resistance.
Application Areas
Office:: Office spaces, Lobbies and corridors.
