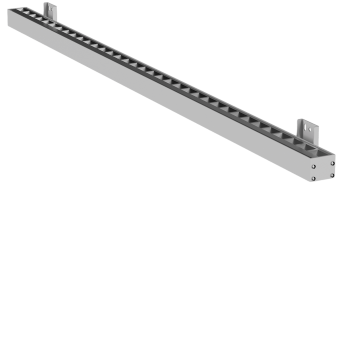

SLIM WALL WASHER
Reflect your interior
The SLIM WALL WASHER is designed to illuminate architectural surfaces, making them radiate with light. It is especially effective for highlighting textures and diverse material finishes.
Colors:
Wattage:
CCT:
Application Areas
Office: Office: conference rooms, open offices, lobbies, and other environments
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Surge rating | 6KV with SPD |
| Driver Placement | Non Integral |
| Driver Type | Constant Current |
| Rated I/P Voltage | 220V - 240 Vac |
| Rated I/P Current | 0.05A @ 12W |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Operating Ambient Temp | 0 to 35 Degree C |

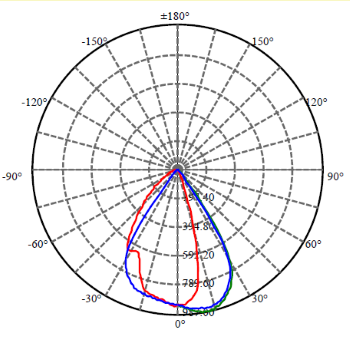

| Optics | Asymmetric beam angle |
| Operating Voltage Range | 140V - 270V |
| Wattage | 12W & 24W |
Features
- Extruded aluminum housing for better thermal management.
- Precise reflector with PC lens wall wash optics for effective wall wash distribution.
- High efficiency driver with necessary safety protections along with additional 6KV SPD.
- Corrosion resistance with special powder coated finish using Nano Technology.
Application Areas
Office: conference rooms, open offices, lobbies, and other environments
