TEXON DR 150
Illuminating Life Intelligently

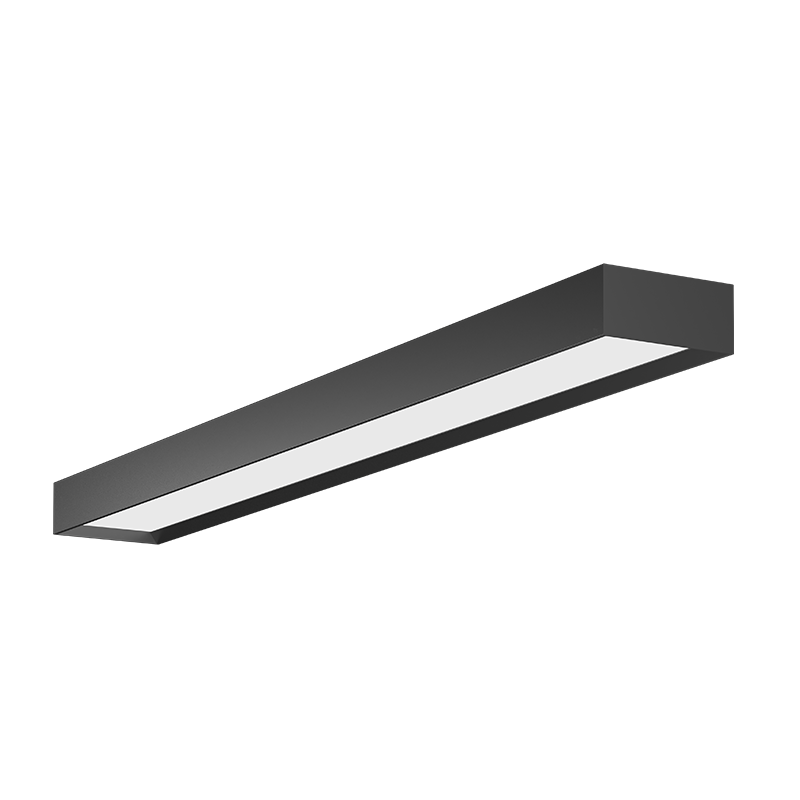

TEXON DR 150 is a deep Recessed Linear LED luminaire with Unique aesthetics and performance, ideal for enriching ambience in Techzone ceiling workspaces.
Colors:
Wattage:
CCT:
Length:
Application Areas
Office: Office: conference rooms, open offices, lobbies, and other environments
Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Driver Placement | Non Integral |
| Driver Type | Constant Current |
| Surge Rating | 6KV with SPD |
| Rated I/P Voltage | 220V - 240 Vac |
| Rated I/P Current | 0.17A@40W |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| Wattage | 12W - 40W |
Features
- Extruded aluminum alloy housing for better thermal management.
- Diffused PS cover for optimum light transmission.
- Corrosion resistance with special powder coated finish using Nano Technology.
- High efficiency driver with necessary safety protections.
Application Areas
Office: conference rooms, open offices, lobbies, and other environments
