TRIO PLUS

The result of three - Minimalism, Performance and Reliability

A highly evolved product that maximizes performance, reliability, and aesthetics while minimizing material and energy use. Purposefully engineered, it delivers more light with lesser resources, ensuring significant energy savings without compromising light quality.

Colors:

Wattage:

CCT:

Length:

Application Areas

Office: Office: conference rooms, open offices, lobbies, and other environments

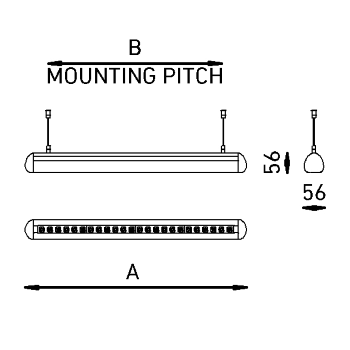

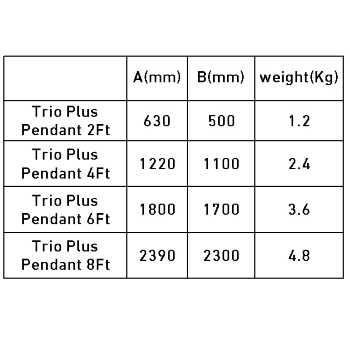

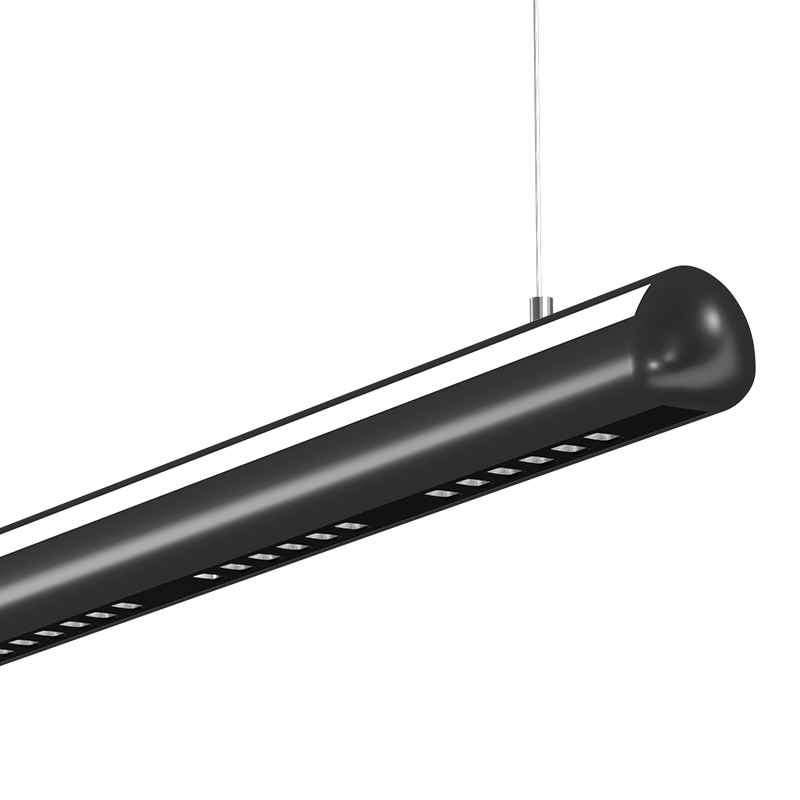

Product Configuration / Application Images

In case of additional questions - please ask below:

Our lighting designers and sales engineers are ready to support your project specifications.

Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.

Technical Specifications

Technical Data

Lumen maintenance	L70 @ 50K Hours
Photo biological Safety	RG0
Electrical Insulation Class	Class 1
IP Rating	IP20
Surge Rating	6 KV with SPD
Driver Placement	Non Integral

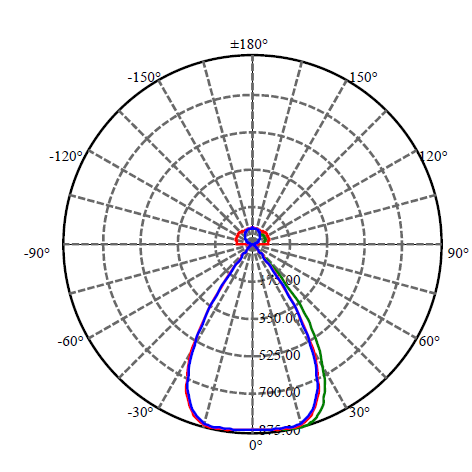

Optics Beam Angle	60 (+/-) 5 Degree
UGR	<12
Rated I/P Voltage	220V- 240 Vac
Rated I/P Current	0.21A@50W
PF	>0.95
THD	<10%@ rated voltage
IK Rating	IK 02
operating ambient Temp	IK 03
Input Voltage Range	140V - 270V
MacAdam Value	3 SDCM
Wattage	20W-50W

Features

Extruded Aluminum housing for better thermal management.
Uniquely designed PDC Aluminum end cap.
Micro linear reflector used at down for optimal light with low glare & specially formulated diffused diffuser at top for optimal light transmission.
Corrosion resistance with special Powder coated finish using Nano Technology.
Available for Direct-Indirect light application.
High efficiency driver with necessary safety protections along with additional 6KV SPD.
