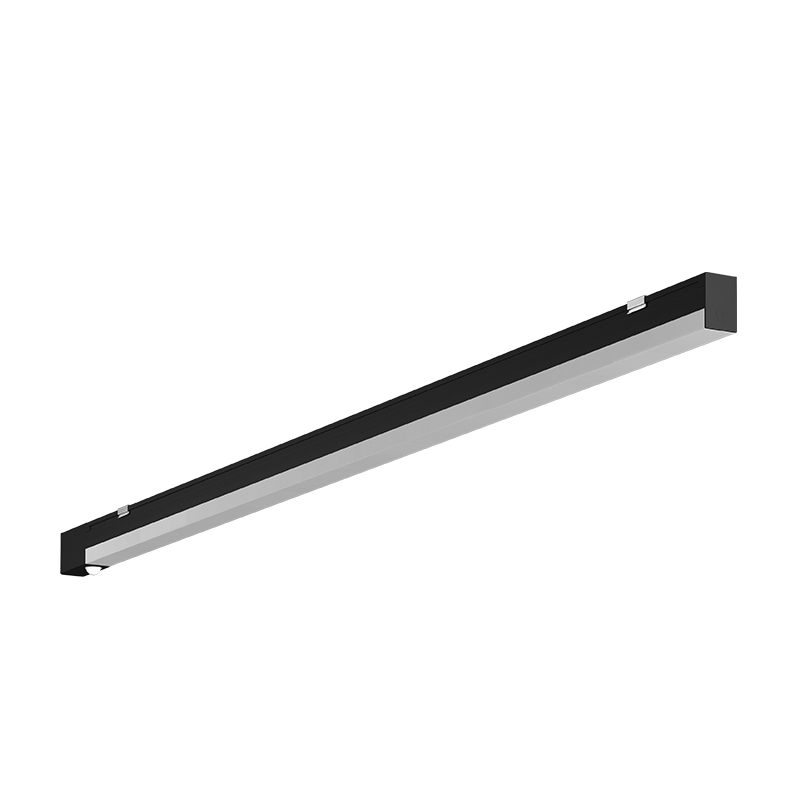

WAND K SENSOR
Simplicity and Elegance
WAND K sensor is a Sleek functional LED integral batten best suited for Industrial & Utility place which demands more light at low investment costs.
Colors:
Wattage:
CCT:

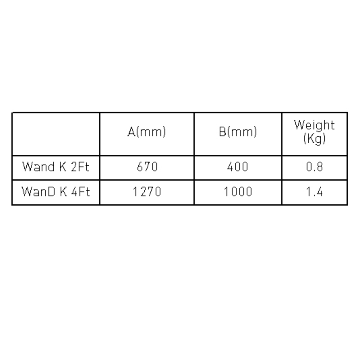

Length:
Application Areas
Office: Office: conference rooms, open offices, lobbies, and other environments

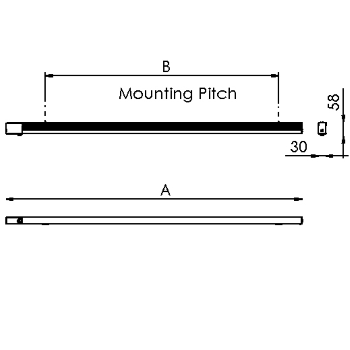

Product Configuration / Application Images
In case of additional questions - please ask below:
Our lighting designers and sales engineers are ready to support your project specifications.
Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.
Technical Specifications
Technical Data
| Lumen maintenance | L70 @ 50K Hours |
| Photo biological Safety | RG0 |
| Electrical Insulation Class | Class 1 |
| IP Rating | IP20 |
| Surge rating | 6KV with SPD |
| Driver Placement | Integral |
| Driver Type | Constant current |
| Rated I/P Voltage | 220V - 240 Vac |
| Rated I/P Current | 0.15A @ 34W |
| PF | >0.95 |
| THD | <10% |
| IK Rating | IK 02 |
| Operating ambient Temp | 0 to 35 Degree C |
| Sensor | PIR Motion Sensor |
| Input voltage Range | 140V - 270V |
| Wattage | 12W - 30W |
Features
- Extruded PC diffuser for optimal light transmission and wide distribution.
- Corrosion resistance with special powder coated finish using Nano Technology.
- Extruded aluminum housing for better thermal management.
- High efficiency driver with necessary safety protections along with additional 6KV SPD.
- Provision of PIR sensors at end cap.
Application Areas
Office: conference rooms, open offices, lobbies, and other environments
