CASK BB

Smart and bright

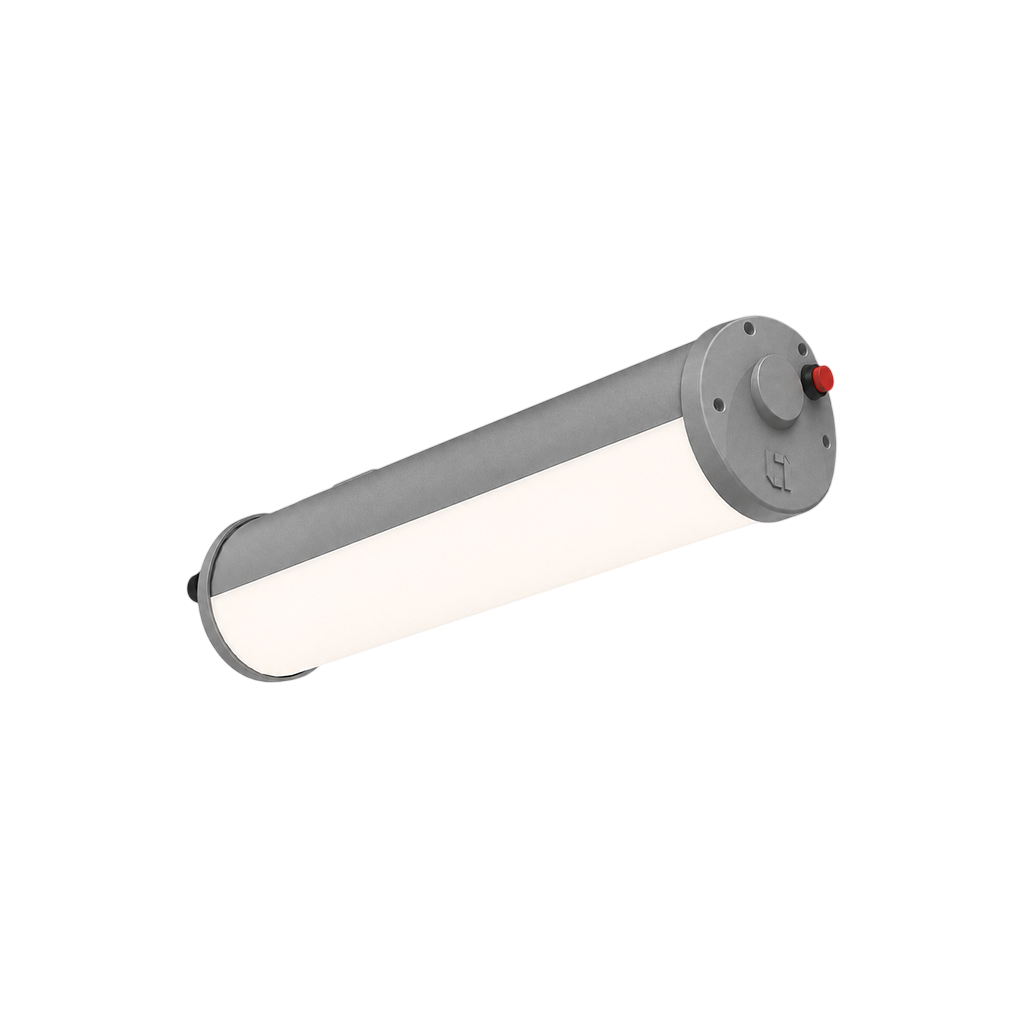

CASK is a linear Surface mounted LED luminaire which is a best solution for illuminating workshops, parking lots, Tower lighting and warehouse

Colors:

Wattage:

CCT:

Application Areas

Office: Industries : Work shops, Warehouse, parking garage etc..

Product Configuration / Application Images

In case of additional questions - please ask below:

Our lighting designers and sales engineers are ready to support your project specifications.

Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.

Technical Specifications

Technical Data

Lumen maintenance	L70 @ 50K Hours
Photo biological Safety	RG0
Electrical Insulation Class	Class 1
IP Rating	IP20
Surge rating	6KV with SPD
Driver Placement	Integral
Driver Type	Constant Current
Rated I/P Voltage	220V- 240 Vac
PF	>0.95
THD	<10%
IK Rating	IK 08
Operating ambient Temp	0 to 50 Degree C
Input Voltage Range	140VAC -275 VAC
Product Weight	2.5 Kg
Sensor	PIR Motion sensor

Features

Pressure diecast Aluminum alloy housing for better thermal conductivity
PDC aluminum center cover which facilitates easy bottom driver maintenance.
UV stabilized injection molded PC diffuser cover with PC (UV proof) PIR sensor
Corrosion resistance with special Powder coated finish using Nano Technology.
High efficiency driver with necessary safety protections along with additional 6KV SPD.
