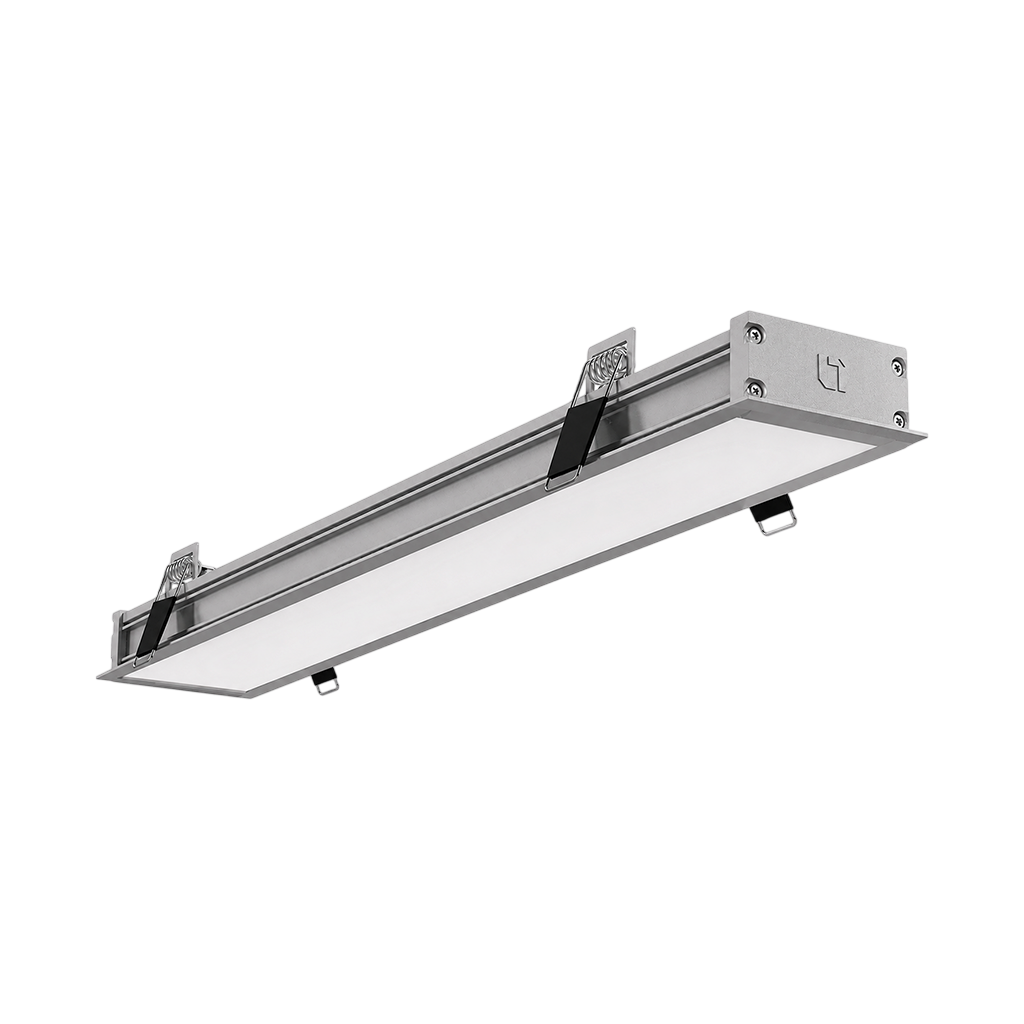

LINEAR CANOPY V2

Inspired by the past. Crafted for the future!

Canopy is a LED Linear Recess Light delivering continuous clean lines and clear light with High performance best in class Aluminum luminaire with Slim integrated design which is Simple and reliable.

Colors:

Wattage:

CCT:

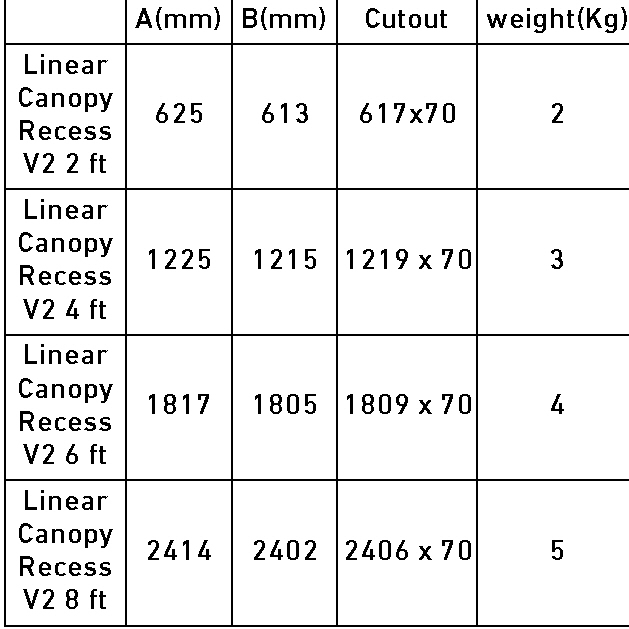

Length:

Application Areas

Office: Industries: Work shops, Warehouse, Parking Garage etc...

Product Configuration / Application Images

In case of additional questions - please ask below:

Our lighting designers and sales engineers are ready to support your project specifications.

Due to the constant renewal of our model range and improving technical characteristics the technical information can slightly differ from the latest version. To receive the most up-to-date technical information for project development please refer to your LT Company manager.

Technical Specifications

Technical Data

Lumen maintenance	L70 @ 50K Hours
Photo biological Safety	RG0
Electrical Insulation Class	Class 1
IP Rating	IP20
Surge rating	6KV with SPD
Driver Placement	Integral
Driver Type	Constant Current
Rated I/P Voltage	220V- 240 Vac
PF	>0.95
THD	<10% @rated voltage
IK Rating	IK 08
Operating ambient Temp	0 to 50 Degree C
Input voltage Range	140 VAC - 270 VAC
Product weight	2.5 Kg
Sensor	PIR Motion Sensor

Features

High efficiency isolated driver with necessary safety protections with external surge of 6KV
Corrosion resistance Powder coated using Nano Technology
UV stabilized Injection moulded PC diffused cover with sensor
Uniquely designed PDC Aluminium end cap
Extruded Aluminium alloy housing for better thermal conductivity
